Lung ventilator «AVENTA-M»

Lung ventilator «AVENTA-M»
Lung ventilator «AVENTA-M»
Fast order
  • Description
  • Product Features

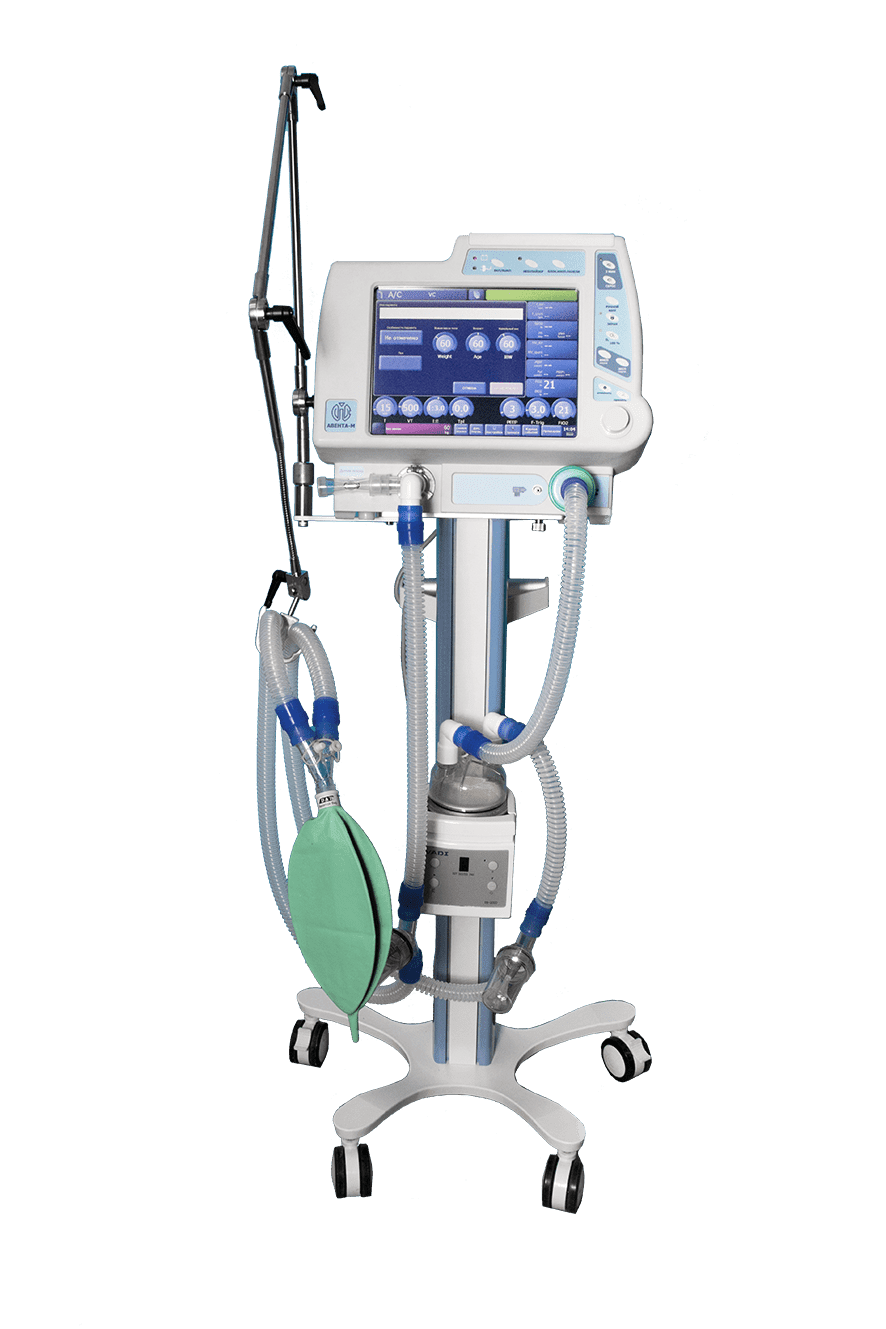

High-class ICU/PICU ventilator AVENTA-M

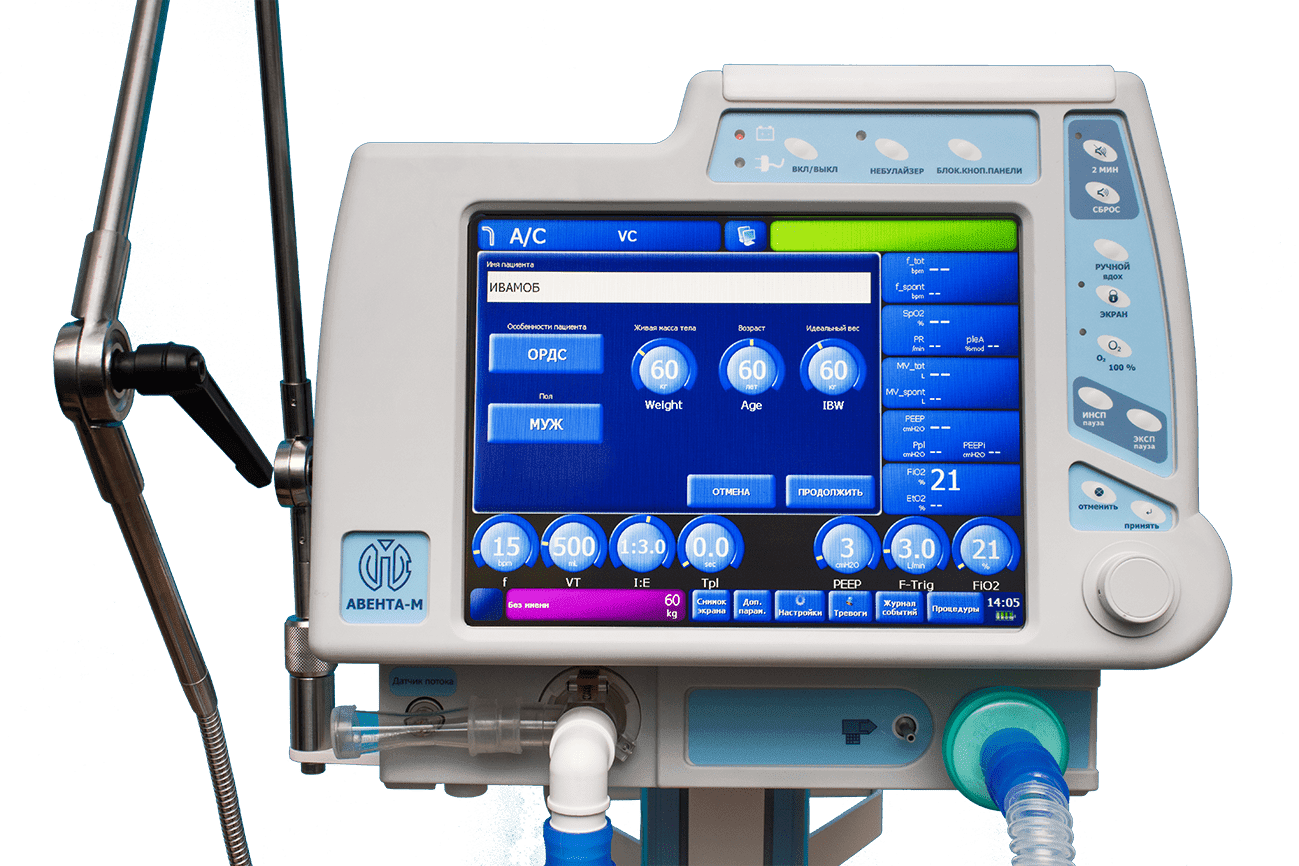

Ventilator with a built-in turbine and a touch screen display. Graphic display reflects all digital parameters, as well as respiratory graphics, including FiO2, EtCO2, monitoring in real-time mode. The ventilator can be used for adults and pediatric patients from 3 kg to 250 kg.

Breath rate(f)
1-150 bpm
Respiratory volume (VT)
10-3000 ml
Inspiratory pressure (Pi)
0-100 cm H2O
Inspiratory time (Ti)
0,1-15 sec
Pressure supports (PS)
0-100 cm H2O
Flow-trigger (F-trig)
0-25 l/min, OFF
FiO2
21-100% O2 for 2 min
Color TFT touch-screen display 12 inches
on

Ventilation modes:

  • Volume Control Ventilation, VCV

  • Pressure Control Ventilation, PCV

  • Synchronized Intermittent Mandatory Ventilation, Volume Controlled, SIMV-VC

  • Synchronized Intermittent Mandatory Ventilation, Pressure Controlled, SIMV-PC

  • Synchronized Intermittent Mandatory Ventilation, Pressure Controlled, Volume Guaranteed, SIMV-PCVG

  • DUAL-LEVEL

  • ASB, pressure support

  • Constant Positive Airway Pressure/Pressure Support Ventilation, CPAP/PSV, SPONT

  • PC-VG, PRVC-SIMV, VS after-flow

  • NIV

Features:

  • Micro-processor controlled ventilation system with integrated monitoring of breath suitable for 3kg newborns, children and adults;

  • Apnea detection;

  • Pressure relief valve;

  •  High sensitive correction of the ventilation in case of independent breathing attempts of the patient;

  • Automatic adjustment of ventilation parameters and alarm according to the weight;

  • Automatic switching to the sanitation of airways mode;

  • Automatic selection of pressure increasing optimal rate (Pramp-AUTO) ;

  • Sensitive smart trigger does not miss real breathing attempts;

  • Automatically controlled Exhalation trigger (Esens-AUTO) ;

  • Automatically controlled FiO2;

  • Automatically controlled PEEP;

  • Auto maintenance (support) of the set Minute Ventilation in all modes;

  • Automatic adaption on inspiratory stream in the loaded ventilation regimes;

  • Automatic outflow compensation;

  • Expiratory valve (unit) installed inside the lung ventilator;

  • 6 hours built-in battery.
